Aluminum Battens

Durable and non-corrosive batten system with acoustic backing options for walls and ceilings for interior & exterior applications.

enquirerequest samples
Fire Rating
Non combustible material
Sustainability
Manufactured from recycled aluminum
Key Featurespowder coating optionsproduct detailsinstallationprojects

Key Features

  • Suitable for direct fix and suspended ceiling systems
  • 10 year product warranty
  • Non-combustible and non-corrosive material
  • Suitable for Exterior and Interior Applications
  • Acoustic performance of up to 0.95 NRC can be achieved
  • Customisable batten spacings and batten sizes
  • Woodgrain powder-coating, powder-coating and anodising finish options

Woodgrain powder-coatings

Product Details

Environment

Zenthe polyester is manufactured from 60% recycled fibres and 40% virgin fibres.

Colours

Zenthe Polyester battens come in a wide range of colours to suit any interior

Size & Rebates

​Ask about custom sizes and shapes for larger projects.

Fittings

The male aluminium track (ZBI) is screw fixed into the back of the batten and the female clip (ZBC) is fixed to the front of the horizontal track.

Application

Feature Battens Clip System

Exploded View (For Smaller Battens)
Application

Feature Battens Clip System

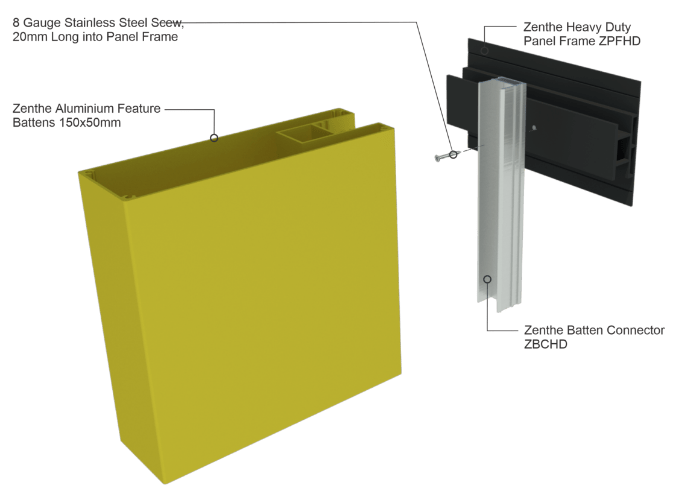

Exploded View (For Larger Battens)
Acoustic Backing & Sound Installation

Acoustic backing panels can be 12mm (0.40 NRC) and 25mm (0.60 NRC) and are incorporated into the system for great NRC performance. They also reduce costs as they can replace the need for alternative wall & ceiling lining.

The acoustic panels have a Group 1 (Aus) and Group 1S (NZ)  fire rating and are available in the range of colours shown.

Alternatively, acoustic blanket is recommended for achieving up to 0.95 NRC

Wall Batten Installation

Panel Frame fix - straight wall (acoustic integration)

The Zenthe panel frame is horizontally screw fixed onto timber or steel framing at 450mm to 600mm centres then the 12mm acoustic backing is slid into place between the panel frames. The Zenthe batten connector is then screw fixed onto the panel frame at the desired spacing and the Zenthe batten infill is screw fixed into the back of the rebated feature batten and simply clicked into place. A very quick and simple installation.

Click here to view  PDF version  of the section views showing the ZPF panel frames' dimensions.

Application

Aluminum Feature Battens Install Procedure

Walls
Panel Frame fix - curved wall

The curve-able Zenthe panel frame is horizontally screw fixed onto timber or steel framing at 450mm to 600mm centres then the 12mm acoustic backing is slid into place between the panel frames. The Zenthe batten connector is then screw fixed onto the panel frame at the desired spacing and the Zenthe batten infill is screw fixed into the back of the rebated feature batten and simply clicked into place. A very quick and simple installation.

The Rondo components are Flexible Track 103 (51mm), 107 (64mm), 108 (76mm) and 109 (92mm) and steel studs to suit.

Application

Aluminum Feature Wall Battens Install Procedure

Curved Walls/Ceilings
Direct fix straight wall (non-acoustic )

The Zenthe batten connector is screw fixed through the existing lining into timber or steel studs at the desired spacing and the Zenthe batten infill is screw fixed into the back of the rebated feature batten and simply clicked into place. A very quick and simple installation.

Application

Aluminum Feature Wall Battens Install Procedure

Direct Fix Wall
Application

Aluminum Feature Battens Clip System

Exploded View (for smaller battens)
Application

Aluminum Feature Battens Clip System

Exploded View (for larger battens)

Ceiling Batten Installation

​Panel Frame fix - straight ceiling (acoustic integration)

The Zenthe panel frame is horizontally screw fixed onto timber or steel framing at 450mm to 600mm centers. The 12mm acoustic backing is slid into place between the panel frames.

The Zenthe batten connector is then screw fixed onto the panel frame at the desired spacing and the Zenthe batten infill is screw fixed into the back of the rebated feature batten and simply clicked into place.

A very quick and simple installation.

Application

Aluminum Feature Battens Install Procedure

Direct Fix Ceilings
Direct fix straight ceiling (non-acoustic)

The Zenthe batten connector is screw fixed onto the Gib or framing at the desired spacing, followed by the Zenthe batten infill screw fixed into the back of the rebated feature batten. Then the batten - infill first - is simply clicked into place onto the batten connector

A very quick and simple installation.

Application

Aluminum Feature Wall Battens Install Procedure

Direct Fix Ceilings / Soffits
Integration with the Rondo Keylock suspended ceiling system

The curve-able Zenthe batten frame is horizontally fixed onto the Rondo Keylock joiner 139, then the 12mm acoustic backing is slid into place between the batten frames. The Zenthe batten connector is then screw fixed onto the batten frame at the desired spacing followed by the Zenthe batten infill screw fixed into the back of the rebated feature batten. The batten is simply clicked into place. A very quick and simple installation.

The Rondo components are Flexible Track 103 (51mm), 107 (64mm), 108 (76mm) and 109 (92mm) and steel studs to suit.

Application

Aluminum Feature Battens Install Procedure

Suspended Ceilings
Application

Aluminum Feature Battens Install Procedure

Suspended Ceilings
Application

Fix ZBC batten connecter directly to Rondo Furring Channel 129

Application

Rondo integration (non-acoustic)

Fix batten connecter direct to Gib.
Application

"Lift-up" Access Panel Option

Application

Hinged Access Panel Options
